Selecting the right feeder is critical to the performance and longevity of your operation. Whatever feeder you choose, the primary purpose remains the same: to convey a controlled and consistent discharge of material from the feed hopper or bin to downstream equipment.
Both feeder types offer several advantages and limitations depending on the application. The correct solution depends on material characteristics, feeding method, impact conditions, maintenance strategy and overall operational demands.
请继续阅读，了解这些关键区别，以便您能针对设备做出明智的选择。
什么是带式给料机？

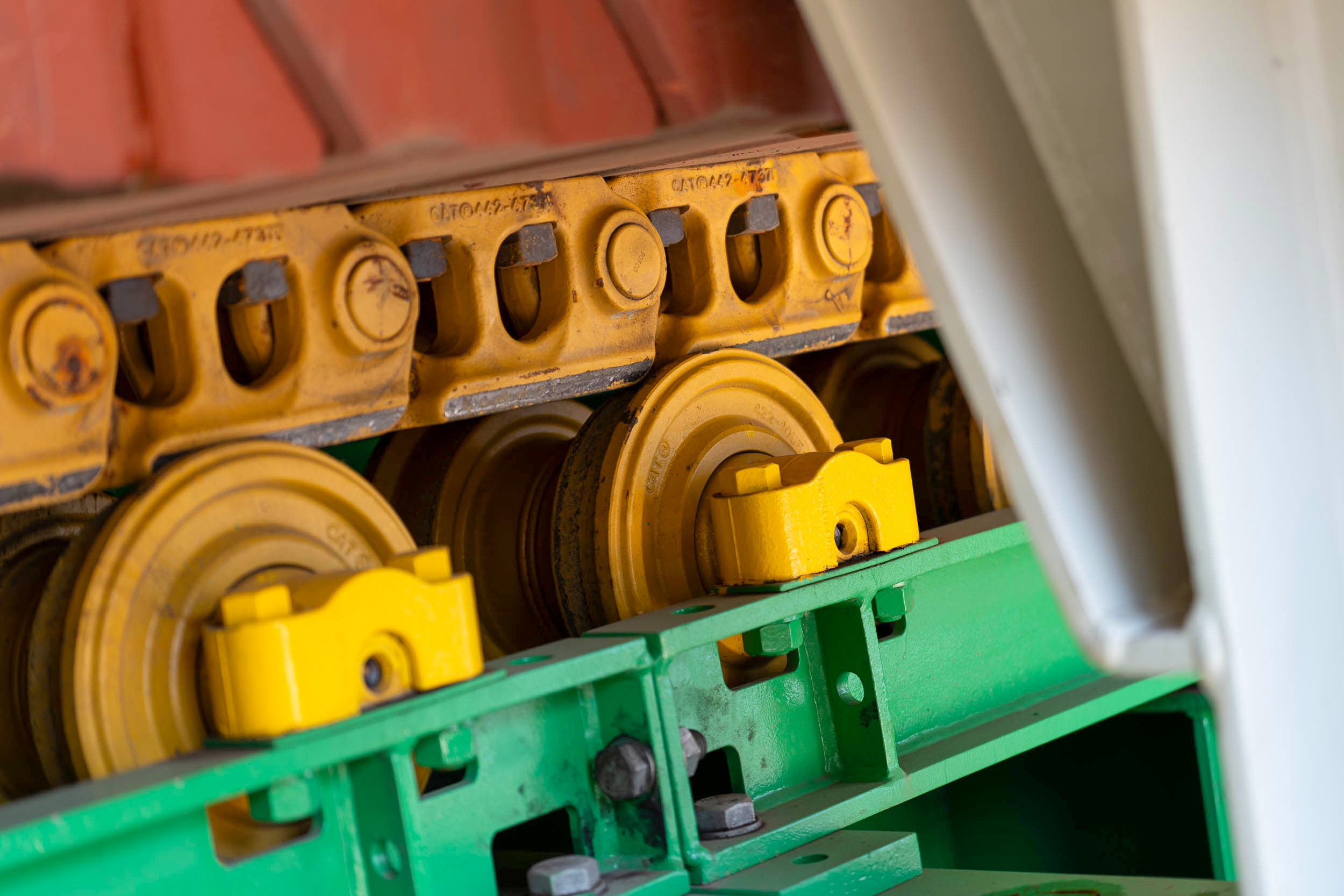

An apron feeder is engineered for heavy-duty applications. Its design resembles the track system of a bulldozer, incorporating chains, rollers and sprockets to move overlapping steel pans along a robust frame.
Constructed predominantly from steel, apron feeders are built to withstand high impact loading, large lump sizes, as well as sharp and abrasive materials. They are commonly installed in ROM applications where material is dropped directly from height into the hopper.
板式给料机的优点
- 由重型钢制部件制造而成
- Reduced material slippage due to slower feeder speeds and the use of 'grousers' to carry the material
- 能够处理大型、重型和锋利的物料
- Capable of accepting very large material, with lump sizes of up to 2.5–3m³ depending on feed conditions
- 在高冲击条件下具有长使用寿命
- Operating capacities up to and over 15,000tph
托盘式给料机的局限性
- 前期资本投入较高
- 运行速度较慢
- Minor leakage of fines between pans, typically managed with a fines belt conveyor underneath or installing a fines retrieval tray
Apron feeders are designed for durability and reliability in demanding environments. Where impact and abrasion are unavoidable, their mechanical strength provides long-term operational security.
什么是带式给料机？
A belt feeder is a common feeder type that works best with smaller materials, The maximum size of the material depends on material density and impact conditions. It consists of an endless rubber belt supported by rollers, driven by a head drum and guided by tail and idle drums. Belt feeders are commonly installed after a sizer or crusher plant, though they can be used in both primary and secondary processing applications.
The belt itself is a consumable component and will wear over time. While belt feeders are versatile and efficient, sharp or oversized material can puncture or damage the belt, leading to increased maintenance and potential downtime.
带式给料机的优点
- 特别适合处理潮湿或脏污的物料
- 特别适合较小粒径的骨料
- 更高的运行速度
- 初始资本投入较低
皮带给料机的局限性
- 需要更多的日常维护
- 易被尖锐或过大的材料划破
- 在某些情况下，材料可能会滑动
Belt feeders are efficient and economical for many applications, particularly where material is smaller, more uniform and not subjected to heavy impact loading.
何时选择板式给料机而非带式给料机
| Apron feeder | 带式给料机 |
|
|
Common applications of apron feeders and belt feeders
An apron feeder is commonly used in primary, high-impact applications, including:
- Receiving run-of-mine (ROM) material dumped from haul trucks, draglines or bulldozers
- Primary hopper and tipping point installations where material is dropped from height and high impact
- Truck and train loading scenarios that require stop/start feeding capability
- Heavy duty mining applications involving large, sharp or abrasive material
A belt feeder is typically used in secondary or downstream stages of processing where material has already been reduced in size, including:
- Feeding crushed or sized material to screens, mills etc
- Long distance material movement
- Controlled discharge of material from secondary hoppers, bins and silos
- Conveying of small particle sizes with low impact
Which feeder is right for your operation?
在许多现代加工厂中，这两种给料机都会在同一生产流程中经过战略性配置。例如，可在主料斗处安装板式给料机，以处理大块物料并应对冲击性装料。随后，在主破碎机/分级机之后，可使用带式给料机进行二次筛分或物料输送作业，此时物料的粒度已得到减小。这种混合方案使生产过程能够在工厂的不同阶段平衡耐用性、成本效益和处理能力。
需要专家建议，以选择最适合您需求的设备吗？请联系我们，我们的材料加工专家将为您详细解答项目相关问题。
